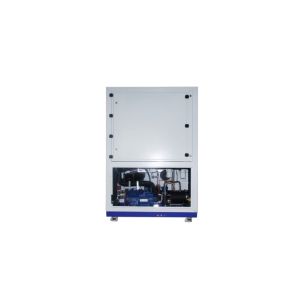

High-Temperature Aging Test Chamber Material Aging Testing Electronics Testing

Ask Latest Price
Video Channel
Brand Name :Envsin
Model Number :EWG
Certification :CE
Place of Origin :China
MOQ :1
Payment Terms :T/T, Western Union
Delivery Time :2Months~3Months
Packaging Details :Woden Case
Chamber Name :High-Temperature Aging Test Chamber
Temp. Range (℃) :R. T+20~200
Temp. Constancy :±0. 1~±0. 8 (℃)
Test Space Volume :270/600/1000L
External Dimension (mm) :1250Wx980Dx1850H
Test Space Dimension (mm) :850Wx700Dx1000H
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description

High-Temperature Aging Test Chamber Material Aging Testing Electronics Testing

Key Features:

  1. Precise Temperature Control: The chamber provides consistent high temperatures, often exceeding 100°C, with advanced temperature regulation for accurate simulation.
  2. Stable and Uniform Environment: Ensures that the temperature is evenly distributed throughout the test area, providing reliable and repeatable results.
  3. Advanced Safety Mechanisms: Includes built-in features such as over-temperature protection, alarms, and fail-safe mechanisms to ensure safe operation.
  4. Energy Efficiency: Designed to minimize energy consumption while maintaining the required temperature conditions.
  5. Programmable Control System: Allows users to set specific test durations, temperature ranges, and other parameters according to their needs.

High-Temperature Aging Test Chamber Material Aging Testing Electronics Testing

Specifications

Aging Chambers EWG2003 EWG3003 EWG2010 EWG3010
Test Space Volume (L) 270 1000
Temp. Range (℃) R. T+20~200 R. T+20~300 R. T+20~200 R. T+20~300
Temp. Constancy (℃) ±0. 1~±0. 8
Temp. Homogeneity (℃) ±0. 5~±2. 0 (RT+20℃~+200℃) , ±1. 5~±3. 5 (200℃~+300℃)
Temp. Deviation (℃) ±0. 5~±2. 0 (RT+20℃~+200℃) , ±0. 5~±2. 0 (200t~+300℃)
Heat Up Time (min) 50 (RT→+200℃) , 90 (RT→+300℃)
Test Space Dimension (mm) 600Wx500Dx900H 850Wx700Dx1000H
External Dimension (mm) 1000Wx780Dx1710H 1250Wx980Dx1850H
Power AC380V±10%, 50HZ, 3/N/PE
Aging Rooms EWG25 EWG45 EWG100 EWG120
Test Space Volume (m3) 25 45 100 120
Temp. Range (℃) RT+10~85
Temp. Constancy (℃ ) ±0. 5~±1. 0
Temp. Homogeneity (℃) ±1. 5~±3. 0
Temp. Deviation (℃) ±1. 5~±3. 0
Heating Rate (℃/min) 2℃/min on average
Power AC380V±10%, 50HZ, 3/N/PE

Applications:

  1. Material Aging Testing: Used to test the aging properties of rubber, plastic, coatings, and other materials that may degrade over time due to heat exposure.
  2. Electronics Testing: Useful for testing the performance of electronic components and devices, ensuring that they can withstand the heat of real-world operating environments.
  3. Automotive Industry: Helps evaluate the long-term durability of automotive parts, such as seals, gaskets, and interior materials, under high-temperature conditions.
  4. Battery Testing: For assessing the stability and lifespan of batteries, especially in electric vehicles, by simulating prolonged high-temperature exposure.
  5. Consumer Electronics: Used in testing the thermal resilience of products like smartphones, laptops, and other consumer electronics that may be exposed to high temperatures during use.
  6. Aerospace and Defense: Ensures that components meet stringent high-temperature performance standards for use in aircraft, spacecraft, and defense equipment.

High-Temperature Aging Test Chamber Material Aging Testing Electronics Testing
